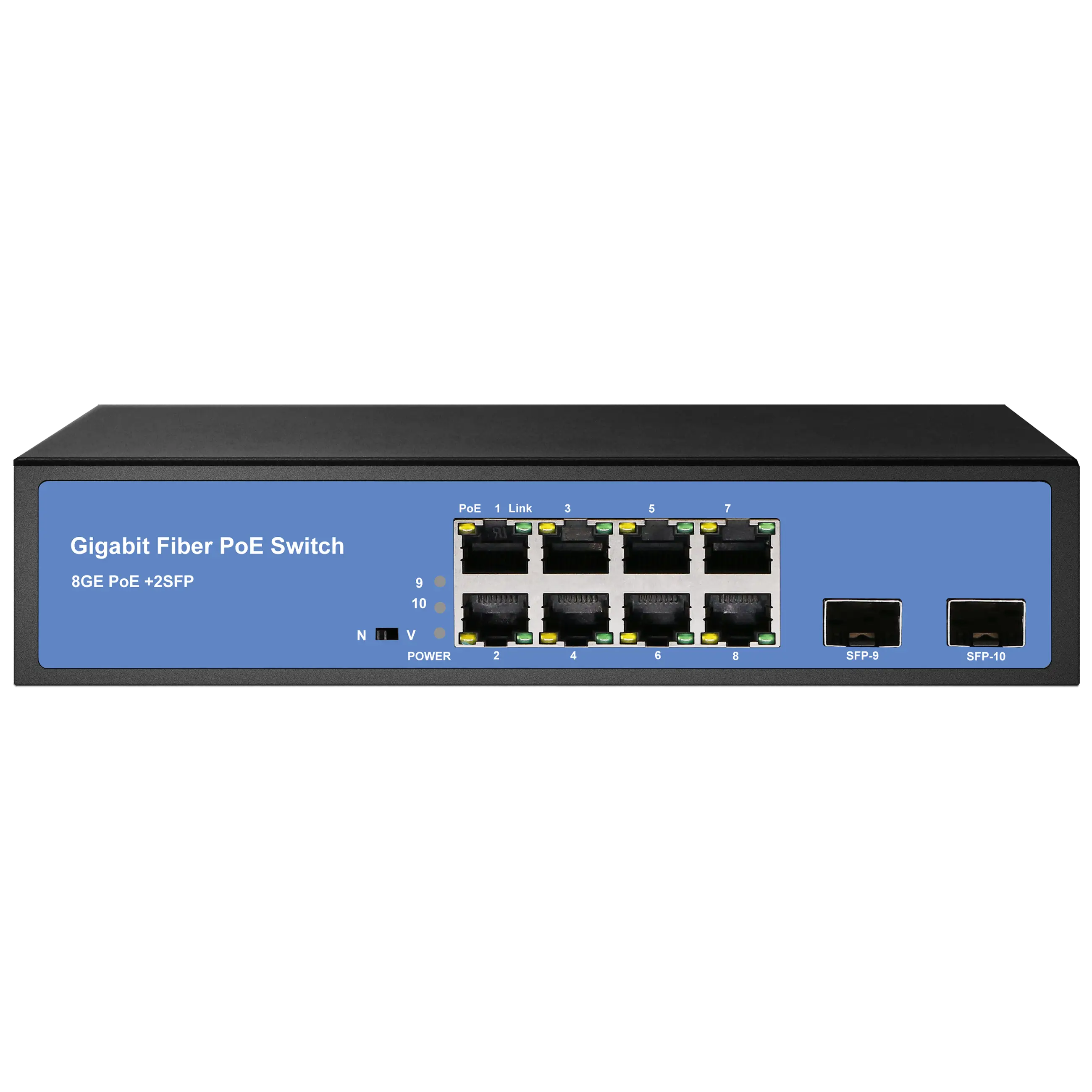

8 ports gbe switch poe powered with uplink 2 Ports gigabit SFP
Model: X1500P-8T2S
Type: Unmanaged PoE Switch
RJ45 Port: 8*10/100/1000M RJ45 port
PoE Standard: IEEE802.3af/at/bt
PoE Port: 1 port Max 90W; 2-8 ports Max 30W/port
Fiber Port: 2*1000M SFP
Installation: Desktop (with optional wall or rack mounting accessories)
Support: OEM&ODM, Small MOQ
Overview
The X1500P-8T2S is a Gigabit PoE switch designed for flexible and high-performance networking. It features 8 Gigabit Ethernet ports for high-speed wired connections and 2 Gigabit SFP fiber ports for extended-distance uplinks, making it ideal for small businesses or surveillance systems. With plug-and-play operation, it requires no configuration, ensuring hassle-free deployment.
Supporting Power over Ethernet (PoE), the switch delivers up to 30W-90W per port, powering devices like IP cameras, wireless APs, and VoIP phones. Its robust metal housing ensures durability, while silent fanless operation suits noise-sensitive environments. A cost-effective solution for expanding PoE networks with fiber connectivity.
Key Features
Versatile Connectivity 8*10/100/1000M RJ45 port; 2*10/100/1000M SFP
PoE Buget 1 ports support IEEE802.3af/at/poe++/bt, Max 90W
Future-Ready Compatibility various extension protocols for adaptability to evolving standards
Flexible Installation Design easy desktop and optional rack mount
Comprehensive Status Indicators easy monitoring and troubleshooting
Specification
Model | X1500P-8T2S |
Product Name | Full Gigabit PoE Switch |
Fixed Port | 8*10/100/1000M RJ45 port 2*10/100/1000M SFP |
PoE Port | 1 ports support IEEE802.3af/at/poe++/bt, Max 90W 2-8 ports support IEEE802.3af/at, Max 30W/port |
PoE Power Polarity | af/at: 12+ 36- af/at/poe++/bt: 12+ 45+ 36- 78- |
Total PoE Power | Max 120W |
PoE Dog Function | Support PoE automatically performs, detects and resets faulty devices when PoE is on |
Function Switch | N: Standard shared mode V: Port isolation mode S: Super distant mode (long-distance PoE power supply) |
Port Specification | 10/100/1000BaseT(X)auto-detection, full/half duplex MDI/MDI-X adaptive |
Transmission Mode | Store and Forward(full wirespeed) |
Bandwidth | 20Gbps |
Packet Forwarding | 14.88Mpps |
MAC Address | 4K |
Buffer | 2.5M |
Transmission Distance | 10BASE-T: Cat3,4,5 UTP(≤250m) 100BASE-TX: Cat5 or later UTP(≤150m) 1000BASE-TX: Cat6 or later UTP(≤150m) |
LED Indicator | P: Power LED (Power Overload LED) Uplink port: Green 100M + Orange 1000M PoE Port: Orange PoE LED, Green Network Connection LED V: Port isolation LED S: Super Remote Mode On LED |
Input method | Built-in power supply AC: 100-240Vac 50-60Hz 1.9A Max155W |
Usage Environment | Operating temperature: -10℃ ~ 55℃; Storage temperature: -40℃ ~ 75℃; Operating humidity: 5% ~ 90% RH non-condensing Storage humidity: 5% ~ 95% RH non-condensing |
Product size/Packing size(L*W*H) | Product size: 206*140*45mm Package size: 265*220*68mm |
N.W/G.W(kg) | 1.3/1.5kg |
Lightning protection level | 3KV 8/20us; IP30 |
Installation | Desktop (with optional wall or rack mounting accessories) |
Certificate | CE mark, commercial; CE/LVD EN60950; |
Warranty | Whole device for 1 year(Accessories not included) |
